Crystal Test Fixtures

SMD Test Fixtures
  • Part adapters accommodate various SMD packages (1.0×0.8mm to 5x7mm, HC-49SMD, and custom packages)
  • Proprietary 50 Ohm Reflection SMD Fixture provides measurements to 900 MHz

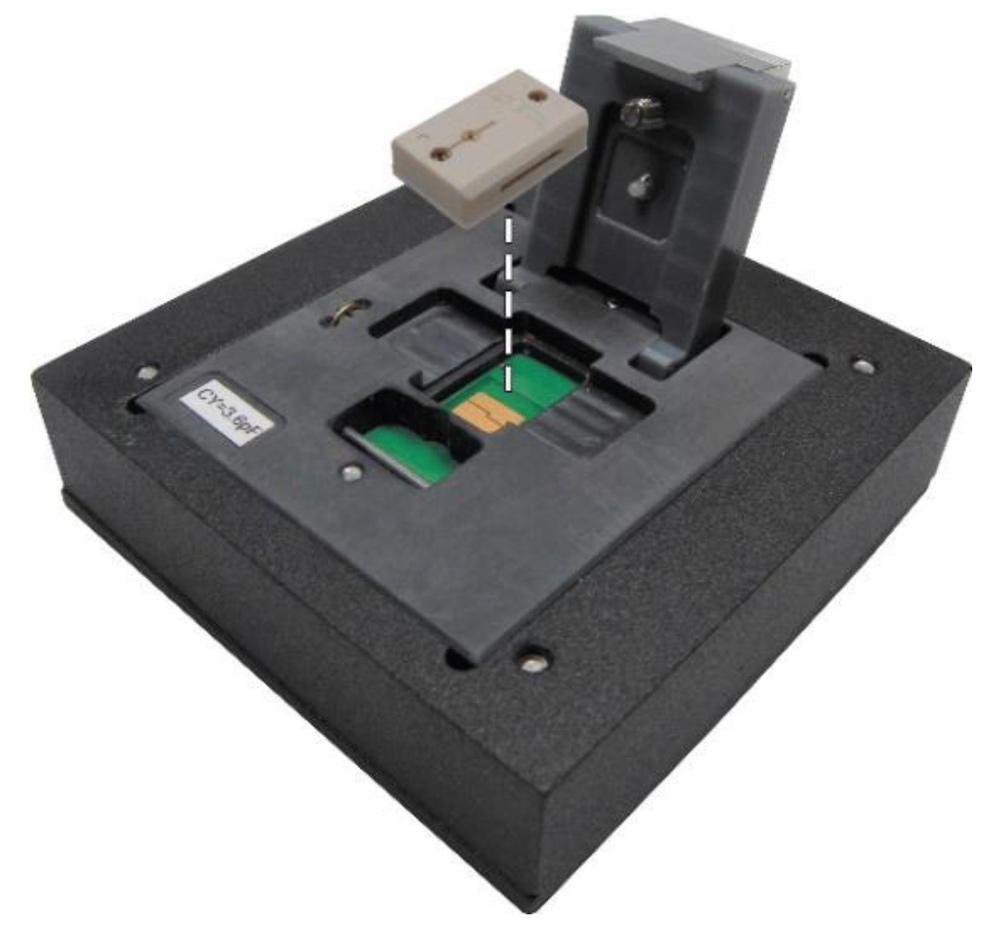

Black card reader/base with a sliding slot; beige connector raised above the slot for card insertion (data input device).
Leaded Device Test Fixtures
  • PI Network test fixtures conform to IEC-444 standards
  • Available fixture impedances include 12.5 Ohms, 50 Ohms, and 750 Ohms
  • Proprietary 1000K Ohm test fixture provides fast measurements for all crystals in the 10 KHz to 300 KHz range

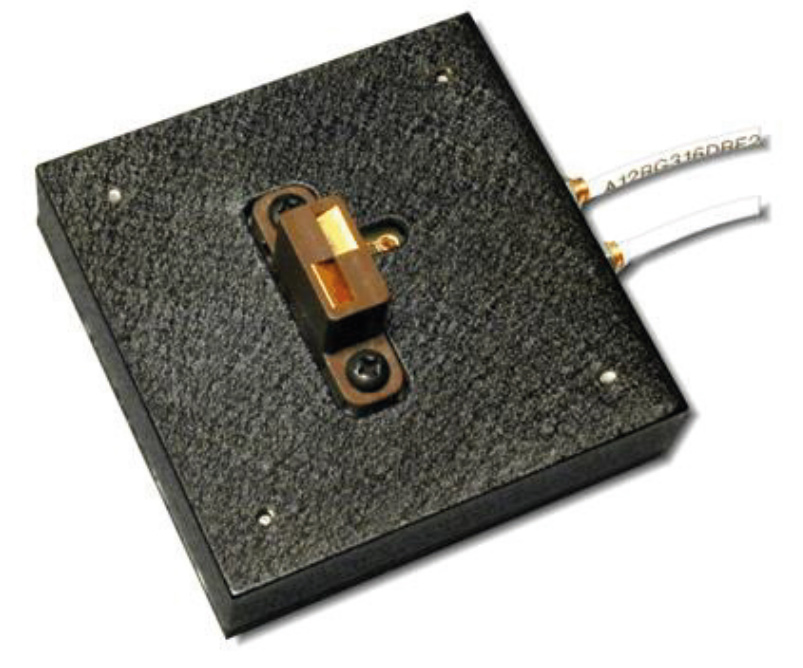

Square black textured panel with a copper-colored latch lock and two white wires protruding from the side.
Bench Top Reflection Test Fixtures
  • Single SMA connection adapts to user-supplied fixture
  • One side of crystal is connected to RF ground
  • Applications include crystal wafer probing systems

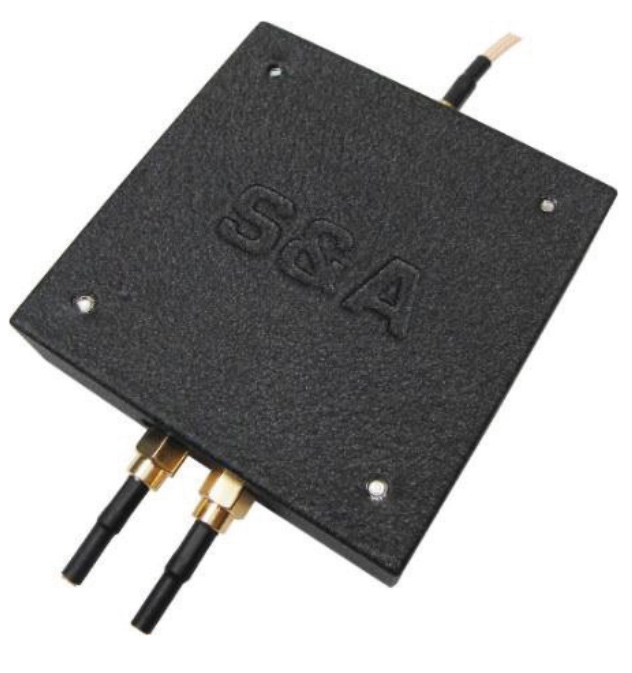

Square black RF module labeled 'GSA' with two gold SMA connectors and a short lead attached at one edge.

The Roditi International Corporation Ltd is the exclusive European representative of Saunders & Associates, LLC
