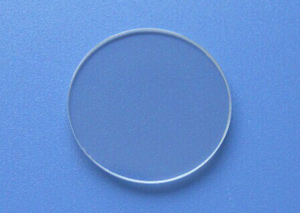

Ce:YAP – Cerium Doped YAP Crystal

YAG and YAP material offer well-known and used, durable properties for fast scintillation and chemical resistivity.

Material can be worked to thin wafers and screens, as well as standard scintillator dimensions and specifications, with optical clarity and properties expected from YAG and YAP.

Ce:YAP is used in x-ray and electron imaging as well as microscopy and tomography.

Crystal orientation <111>
Density 5.4(g/cm³)
Melt point 1875ºC
Size(mm) 25×25×0.5mm,10×10×0.5mm,10×5×0.5mm,5×5×0.5mm
Special size and orientation are available upon request
Polishing Single or double
Decay Time 25ns
Max. Wavelength of Emission 370nm
LO 18 Photon per KeV
