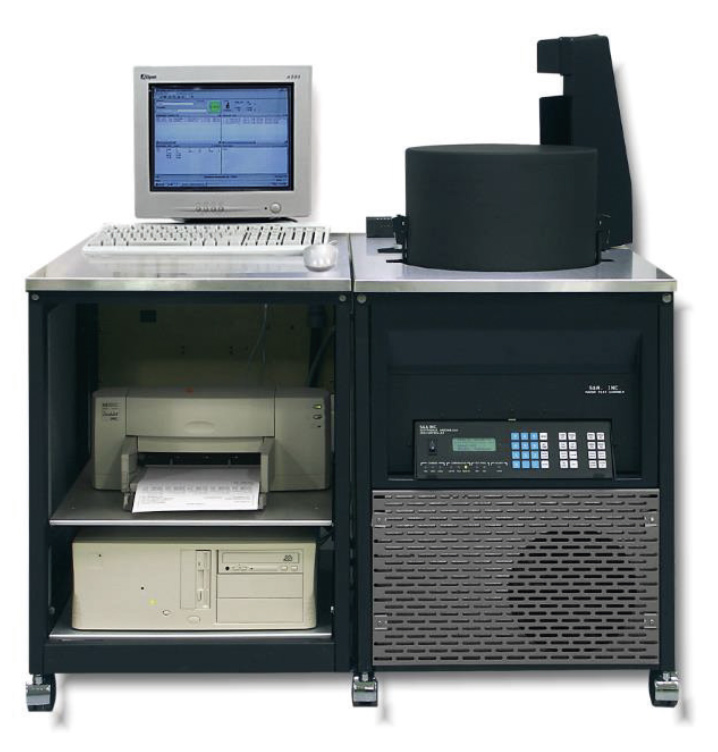

W-2220B Temperature Test System
With 250B-2 or 250C-2 Network Analyzer
- Automated, software based quartz crystal temperature test system
- Measures over 75 different parameters
- Parameter and curve fit characteristics are checked against easy to define QC limits
- Crystals of different frequencies can be tested in a single temperature run
- All data is published in a Microsoft Access data base and can be exported to Microsoft Excel for custom data analysis
- Crystal part number can be used to set complete measurement parameters, QC limits, temperature test points and data printouts
- Printouts are generated using Crystal Reports®
- Accommodates two dual row test wheels with extended life test head contacts
- Easily loaded S&A proprietary sockets accept HC-45, HC-49, HC-43, HC-49US, HC-18, SMD and tubular type packages
- Typically holds 508 devices per run
Specifications
| 250B-2 Frequency Range: | 15 KHz to 220 MHz |
| 250C-2 Frequency Range: | 15 KHz to 400 MHz |
| Frequency Correlation: | ± 1 ppm* at series (typical) |
| Crystal Power: | 1 nW to 1000 uW (1 MHz to 50 MHz) 1 nW to 500 uW (>50 MHz to 200 MHz) |
| Temperature Stability: | ± 0.1° C |
* Proprietary measurement and calibration algorithms provide correlation to industry standard crystal measurement equipment.
System Configuration
- S&A 250B-2 or 250C-2 Network Analyzer
- S&A 2451 Switch Controller
- S&A 4220 Temperature Test Chamber
(LCO2, LN2, or Mechanical Refrigeration Cooling) - IEC-444 Pi-Network Test Head
- Windows® based System Software
- Computer Requirements:
- Windows XP Pro® (32-bit) with Intel uP and PCIe slot
-or-
Windows 10 Pro® (64-bit) with Intel uP and PCIe slot
- Windows XP Pro® (32-bit) with Intel uP and PCIe slot
Sample Reports
