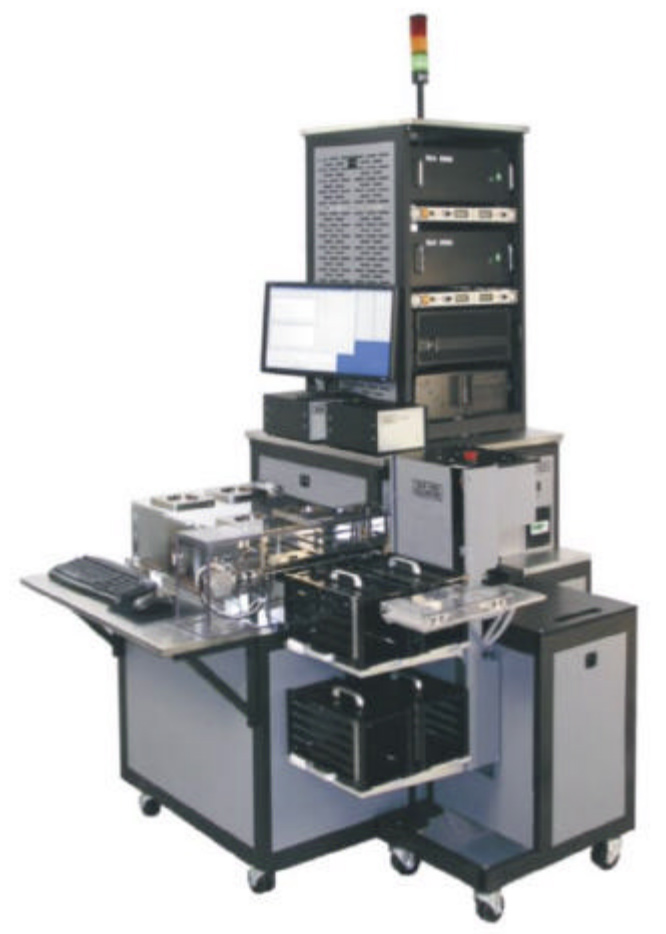

Dual W-5910iE Quartz Crystal Etching System
- Quartz Crystal SMD devices are adjusted to target frequency by Ion Beam Etching of the electrode material
- The motional parameters of the crystal remain virtually unchanged
- Sixty four (64) parts are processed simultaneously for high system throughput
- Small crystal electrodes are as easy to precisely adjust as large electrodes
- Super High Drive capability
- Measured parameters are checked against easy to define Q.C. limits
- Supports small SMD sizes including 3.2×5.0, 3.2×2.5, 2.5×2.0, 2.0×1.6, 1.6×1.25
- Transport boats carry SMD devices in 16×20 S&A flip pallets
- Dual boat configuration holds four pallets per run with a total of 1280 parts

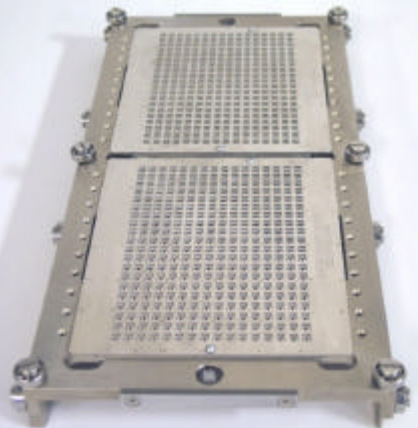

Transport Boat
Specifications
| 250B-1 Frequency Range: | 15 KHz to 220 MHz |
| 250C Frequency Range: | 15 KHz to 500 MHz |
| Etching Performance: | ± 1 ppm typical final frequency |
System Configuration
- Four S&A 250B-1 or 250C Network Analyzers
- Direct Drive Roughing Pump
- Cryo Pump
- Two S&A Dual Channel High Drive Units
- Two S&A Ion Guns
- S&A 690B-X2 Elevator
- Computer
- Windows® based System Software
- Light Pole

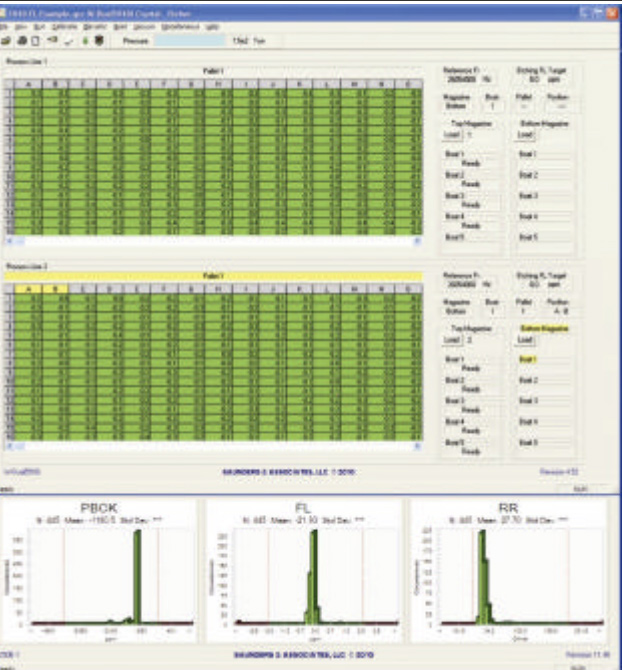

Screen Format
Facility Requirements
| Power: | 380VAC/208VAC 3-Phase, 7KVA, 50/60 Hz |
| Inlet Pressure: | 90 – 100 PSIG |
| Air: | 90 – 100 PSIG |
| Nitrogen: | 70 – 100 PSIG |
| Process Gas: | 20 PSIG |
| Dimensions: | Standard: W 65” x D 37” x H 106” With Elevator: W 65” x D 59” x H 106” |
The Roditi International Corporation Ltd is the exclusive European representative of Saunders & Associates, LLC
