250D-2 900MHz Network Analyzer
- High speed computer controlled network analyzer
- PCIe Bus
- Fully featured graphical software for quartz crystal, ceramic resonator and network analyzer measurements
- Extensive drive level dependency measurements at 5 ms per point
- Over 50 different crystal parameter measurements
- Precision FL measurements
- Multiple spurious sweeps
- Test fixtures available for high frequency SMD, leaded, blank, and low frequency crystals
- Custom integration with OLE
- Supports high frequency SMD reflection fixture
Specifications
| Frequency Range: | 15 KHz to 900 MHz |
| Frequency Correlation: | ± 1 ppm* at series (typical) |
| Typical Crystal Power: | 100 pW to 750 uW (1 MHz to 50 MHz) 1 nW to 500 uW (50 MHz to 200 MHz) 20 nW to 125 uW (200 MHz to 850 MHz) |
| Channels: | One |
| Controller Requirements: | Windows 10 Pro® (64-bit) with Intel uP and 1 PCIe and adjacent open slot |
| * Proprietary measurement and calibration algorithms provide correlation to industry standard crystal measurement equipment. | |

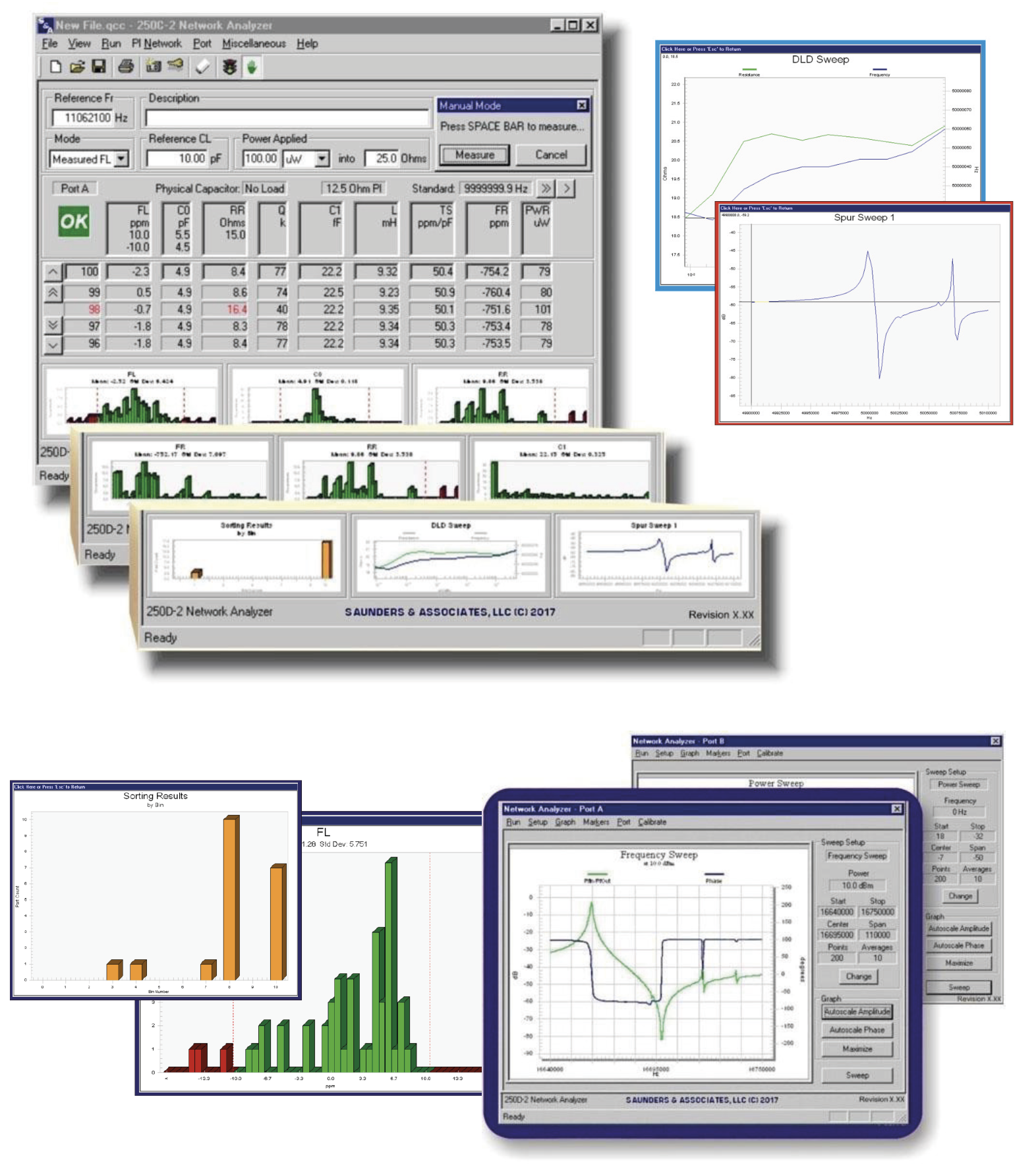

Graphical Displays
