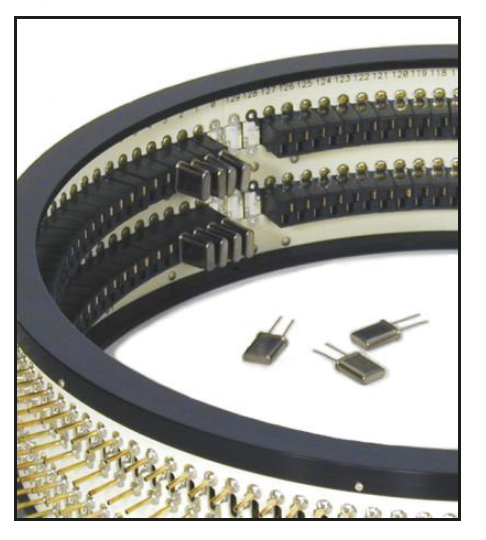

T-604 Dual Row Universal Crystal Test Wheel
- 127 useable device locations per row (254 total)
- Wide entry for ease of loading (.125 x .08 per lead)
- Crystal leads contacted 2mm below can base
Crystal Specification Ranges
| Lead Spacing: | 0.025” – 0.200” |
| Lead Diameter: | 0.012” – 0.040” * |
| Lead Length: | 0.250” – 1.000” |
(Watch crystals through HC-49 family crystals)
* Will accept 0.040 lead diameter, however sockets must then be used only for 0.040″ leads
