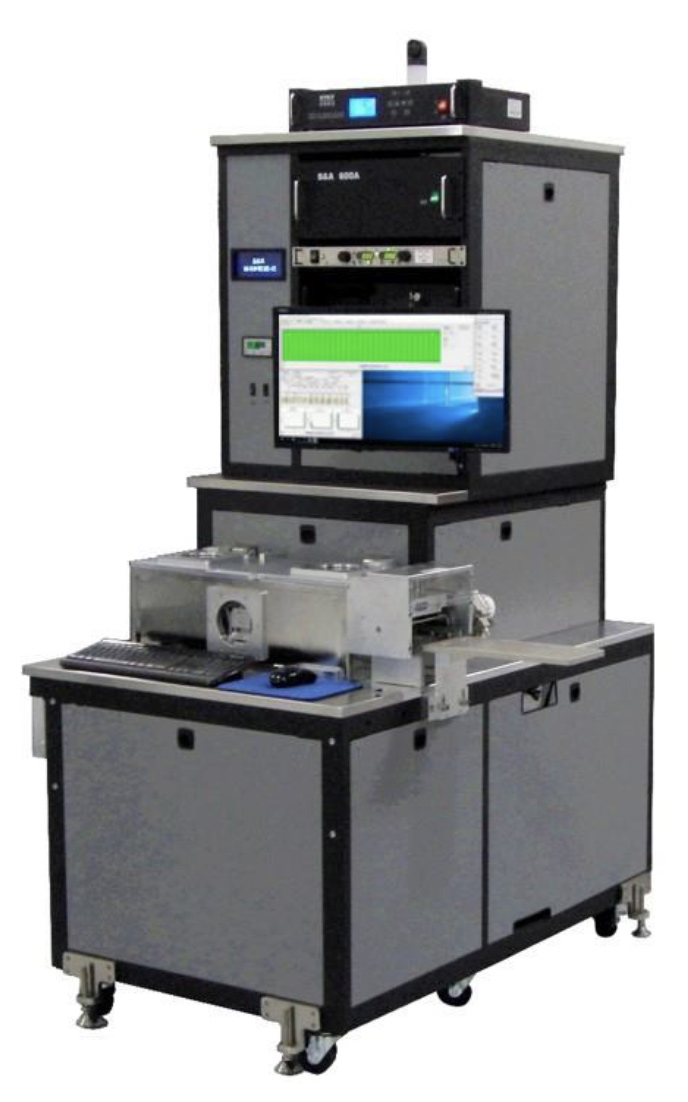

W-5910iB-2 Quartz Crystal Etching System
- Quartz Crystal SMD devices are adjusted to target frequency by Ion Beam Etching of the electrode material
- The motional parameters of the crystal remain virtually unchanged
- Up to thirty-two (32) parts are processed simultaneously for high system throughput
- Precision mechanical design to support small SMD devices, such as 2.5×2.0, 2.0×1.6, 1.6×1.2, 1.2×1.0, etc.
- High Drive capability
- Measured parameters are checked against easy to define Q.C. limits
- Compatible S&A transport boats carry SMD devices in two compatible S&A pallets
- Supports high density pallet matrix 40×16, 3mm x 5mm pitch and Universal Production Pallets (UPP)
Specifications
| 250B-2 Frequency Range: | 15 KHz to 220 MHz |
| 250C-2 Frequency Range: | 15 KHz to 420 MHz |
| Etching Performance: | ± 1 ppm typical final frequency |
System Configuration
- Two S&A 250B-2 or 250C-2 Network Analyzers
- Direct Drive Roughing Pump
- Turbo Pump
- S&A Dual Channel High Drive
- High Performance S&A Ion Gun
- System Controller
- Windows® based System Software
- Light Pole

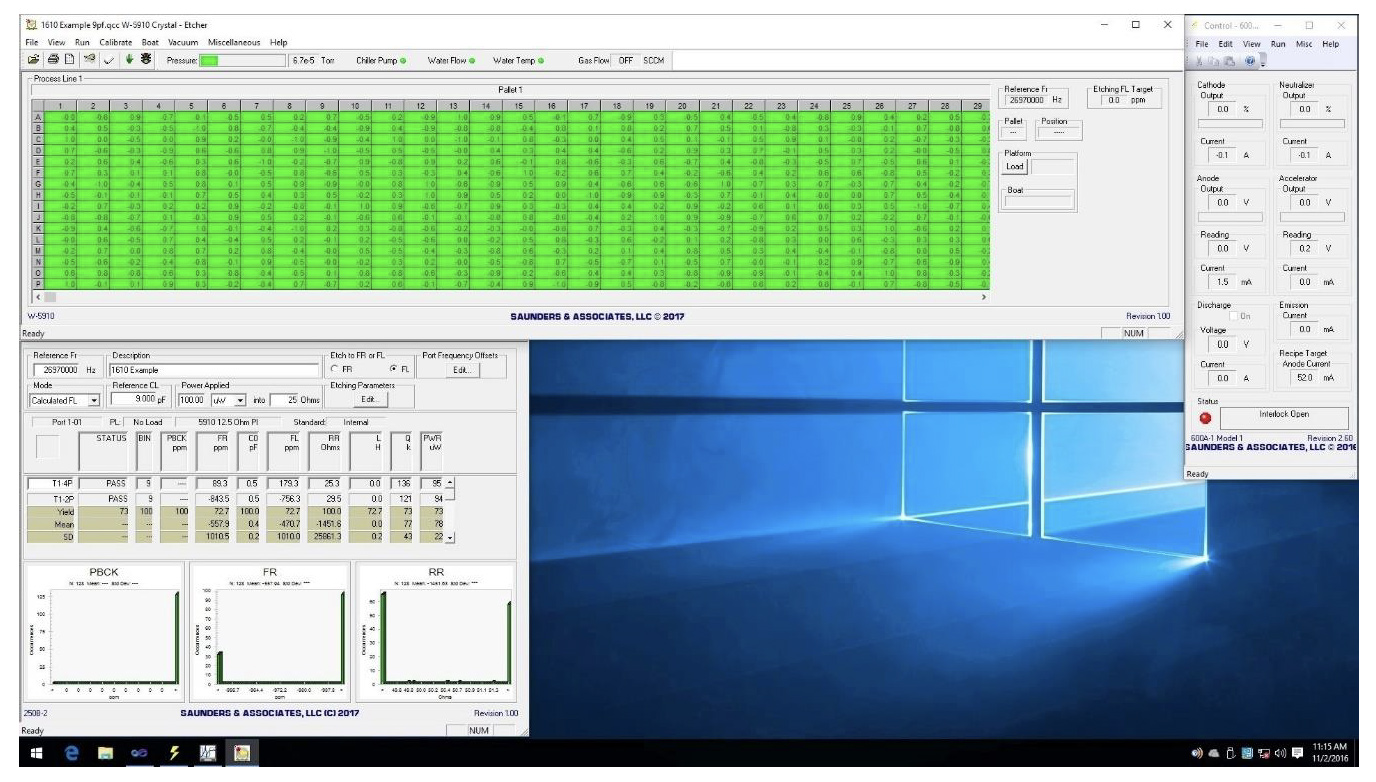

Screen Format
Facility Requirements
| Power: | 380VAC/208VAC 3-Phase, 7KVA, 50/60 Hz |
| Inlet Pressure: | 90 – 100 PSIG |
| Air: | 90 – 100 PSIG |
| Nitrogen: | 70 – 100 PSIG |
| Process Gas: | 20 PSIG |
| Dimensions: | W 53” x D 37” x H 88” |
The Roditi International Corporation Ltd is the exclusive European representative of Saunders & Associates, LLC
