Lithium Niobate Wafers
Lithium Niobate (LiNbO3) applications include electro-optic modulator and Q-switch for Nd:YAG, Nd:YLF and Ti:Sapphire lasers as well as modulator for fiber optics.
We also supply “black” wafers free of pyroelectric discharge: detailed specifications
Examples of common applications of Lithium niobate (LiNbO3) are illustrated in this diagram:
Applications
Typical Specifications (for SAW use)
| Orientation | Diameter | Reference Flat Perpendicular to | Thickness | Surface Finish | ||
|---|---|---|---|---|---|---|
| 127.86° Y – Cut | 76.2 ± 0.7 (mm) and 100.0 ± 0.7 (mm) |
22 ± 3 (mm) and 32 ± 3 (mm) |
X | 0.35 ± 0.03 (mm) and 0.50 ± 0.03 (mm) |
Front | Mirror Polished |
| 64° Y – Cut | X | |||||
| 41° Y – Cut | X | Back | Ground | |||
| 36° Y – Cut | X | |||||
| 163° Y – Cut | Y | |||||
| Y – Cut | X | |||||
LiNbO3
For Optical Use

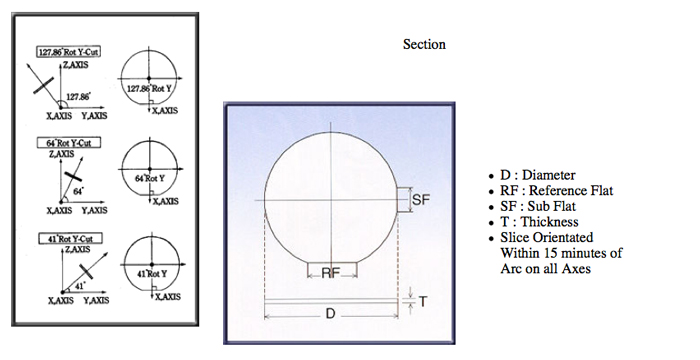

| Orientation | Diameter | Reference Flat Perpendicular to |
Sub Flat | Thickness | Surface Finish | |||
|---|---|---|---|---|---|---|---|---|
| Z – Cut | 76.2 ± 0.7 (mm) | 22 ± 3 (mm) | Y | 10 ± 3 (mm) | – X | 0.50 ± 0.03 (mm) | Front | Mirror Polished |
| Y – Cut | Z | + X | Back | Mirror Polished or Ground | ||||
| Z – Cut | Z | – Y | ||||||
LiNbO3 Optical Wafer
- Integrated optical grade quality
- Thickness 1 mm
- Diameter 3″, 4″ or 5″
- X – cut
- Both sides optical polished
- Y – or Z – axis orientated with flat
- Surface quality: scratch – , hole – and wiper free by magnification of 800
- Parallelity: typ. < 10′
- Flatness: typ. < 1µm / 10 mm (test region 98 %)
MgO : LiNbO3
- Integrated optical grade quality
- Thickness 1 mm
- Diameter 3″, 4″ or 5″
- X – cut
- Both sides optical polished
- Y – or Z – axis orientated with flat
- Surface quality: scratch – , hole – and wiper free by magnification of 800
- Parallelity: typ. < 10′
- Flatness: typ. < 1µm / 10 mm (test region 98 %)
- For MgO – doped material: 5 mol % Mg
Reproduced by kind permission of Yamaju Ceramics Co., Ltd.
© Yamaju 2004 Specifications subject to change without notice. All rights reserved.
