W-2220 Low Frequency Crystal Disc Pallet Temperature Test System
- Automated, software based quartz crystal temperature test system for low frequency crystals
- Up to 2 disc pallets can be stacked
- Leaded and SMD discs available
- Custom sizes available
- Measures over 75 different parameters
- Parameter and curve fit characteristics are checked against easy to define QC limits
- Crystals of different frequencies can be tested in a single temperature run
- All data is published in a Microsoft Access data base
- Data can be exported to Microsoft Excel for custom data analysis
- Printouts are generated using Crystal Reports
- Dual Chamber configuration available
Specifications
| 1000K Ohm Test Head Frequency Range: | 10 KHz to 300 KHz |
| Frequency Correlation: | ± 1 ppm* at series (typical) |
| Crystal Power: | 1 uW into 25,000 Ohms Max |
| Temperature Stability: | ± 0.1° C |
* Proprietary measurement and calibration algorithms provide correlation to industry standard crystal measurement equipment.
System Configuration
- S&A 250B-2 Network Analyzer
- S&A 2451 Switch Controller
(only required in dual chamber configuration) - S&A 4220 Temperature Test Chamber
(LCO2, LN2, or Mechanical Refrigeration Cooling) - S&A 1000K Ohm Test Head
- System Controller
- Windows® based System Software
- Printer (Optional)

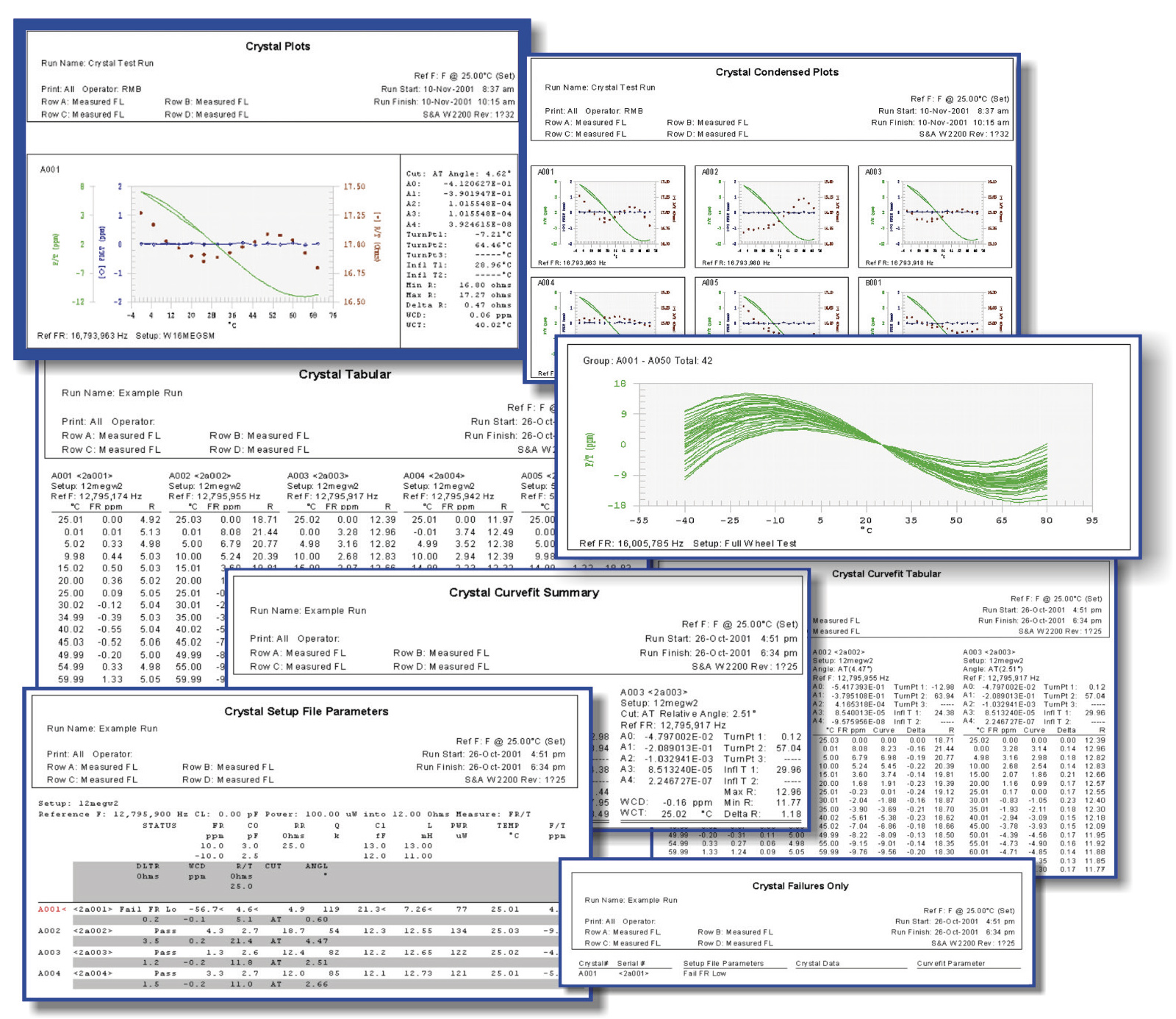

Sample Reports
