Crystal Test Fixtures

For High Drive Applications
  • Provides bench top high drive capability
  • 14.6 dbm fixture gain
  • 30mW drive power into a typical crystal
  • Additional 7 dbm gain available using High Drive Amplifier (S&A 90405544)
  • Supported by S&A 250B/C Network Analyzers

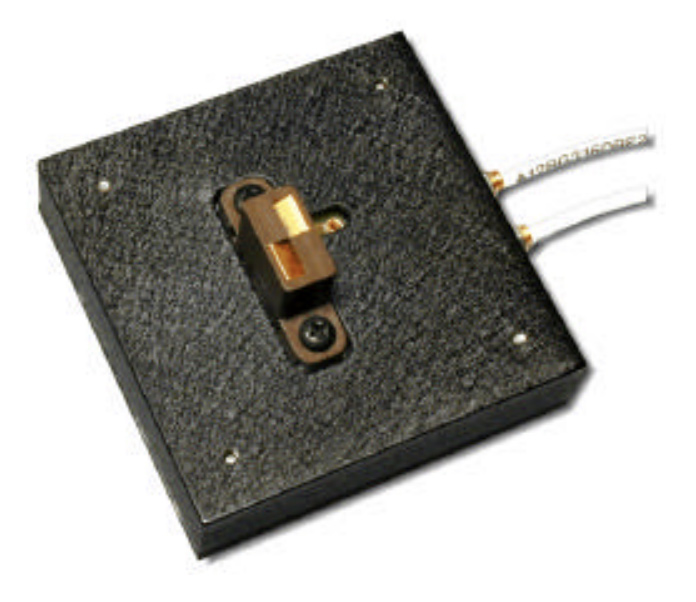

Leaded High Drive Test Head
Small black square electronic module with a copper connector and two wires exiting the side.
SMD High Drive Test Head
Piezo contact pickup being installed on a guitar neck: a small sensor placed into a routed slot on a wooden board with a mounting block and fasteners.

The Roditi International Corporation Ltd is the exclusive European representative of Saunders & Associates, LLC
