W-2220 High Speed TCXO Crystal Temperature Test

  • 5 Times faster than previous systems for TCXO perturbation testing
  • 4 Disc Pallet system holds up to 640 crystals per run
  • Example throughput:
    • -40° C to +80° C
    • 289 measurements on each crystal
    • Total test time only 7 hours

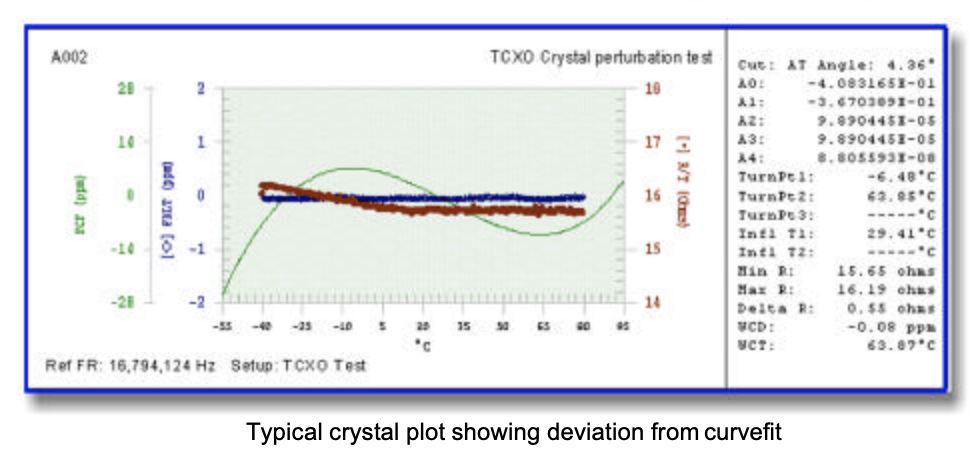

    TCXO crystal perturbation test: center plot shows blue/red data traces deviating slightly from the curve-fit (near zero) across -50 to 95°C, with a green model curve; right panel lists test parameters (cut angle, frequencies, temperatures).

  • Extensive report generation, including group plots
    Line chart of TCXO crystal perturbation test showing multiple green curves of frequency deviation versus temperature, all within QC limits.
Laboratory analytical instrument with a computer workstation, printer, and a circular sample stage on a metal cart for materials analysis.
